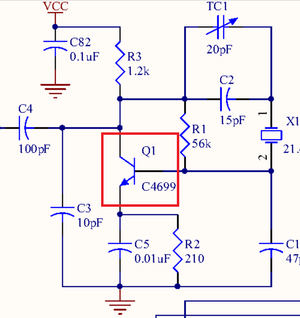

Q1 is a bipolar junction transistor who's base is connected directly to X1. The emitter is connected to C5 and R2. The collector is connected to C3, C4, R3, TC1, C2, and R1.
